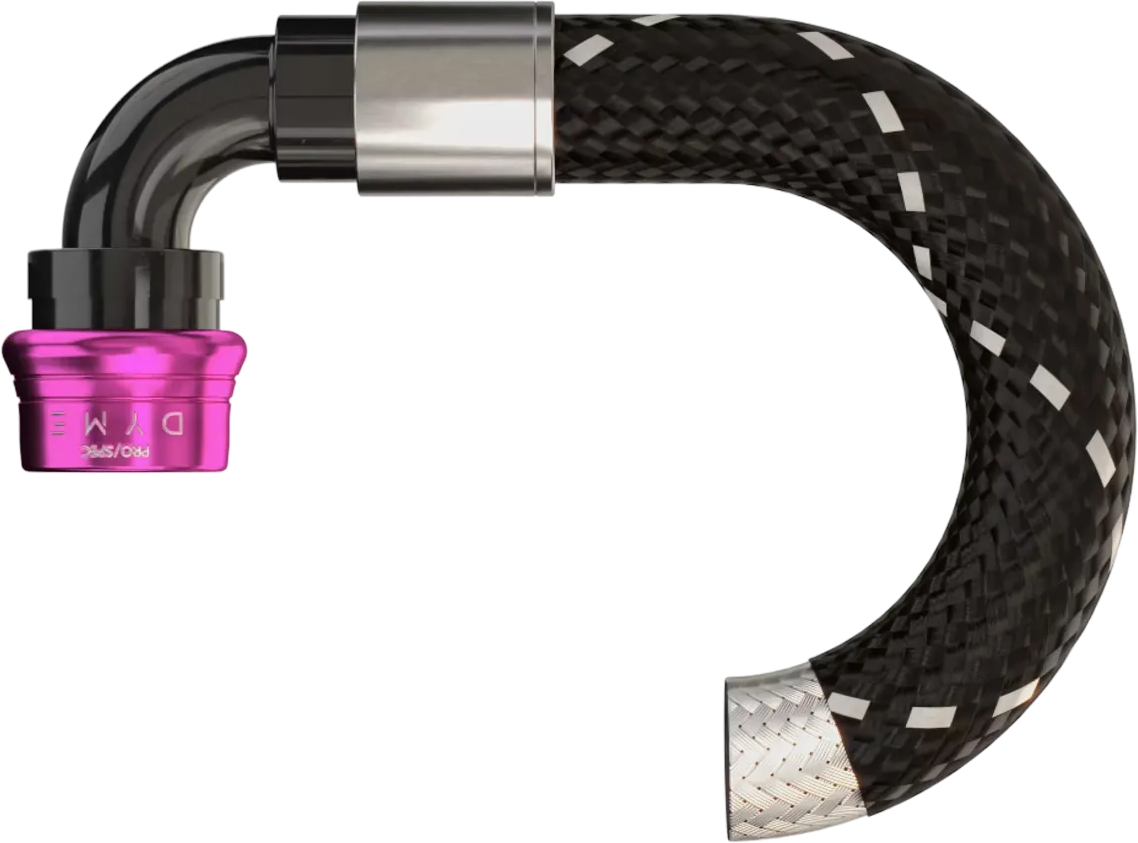

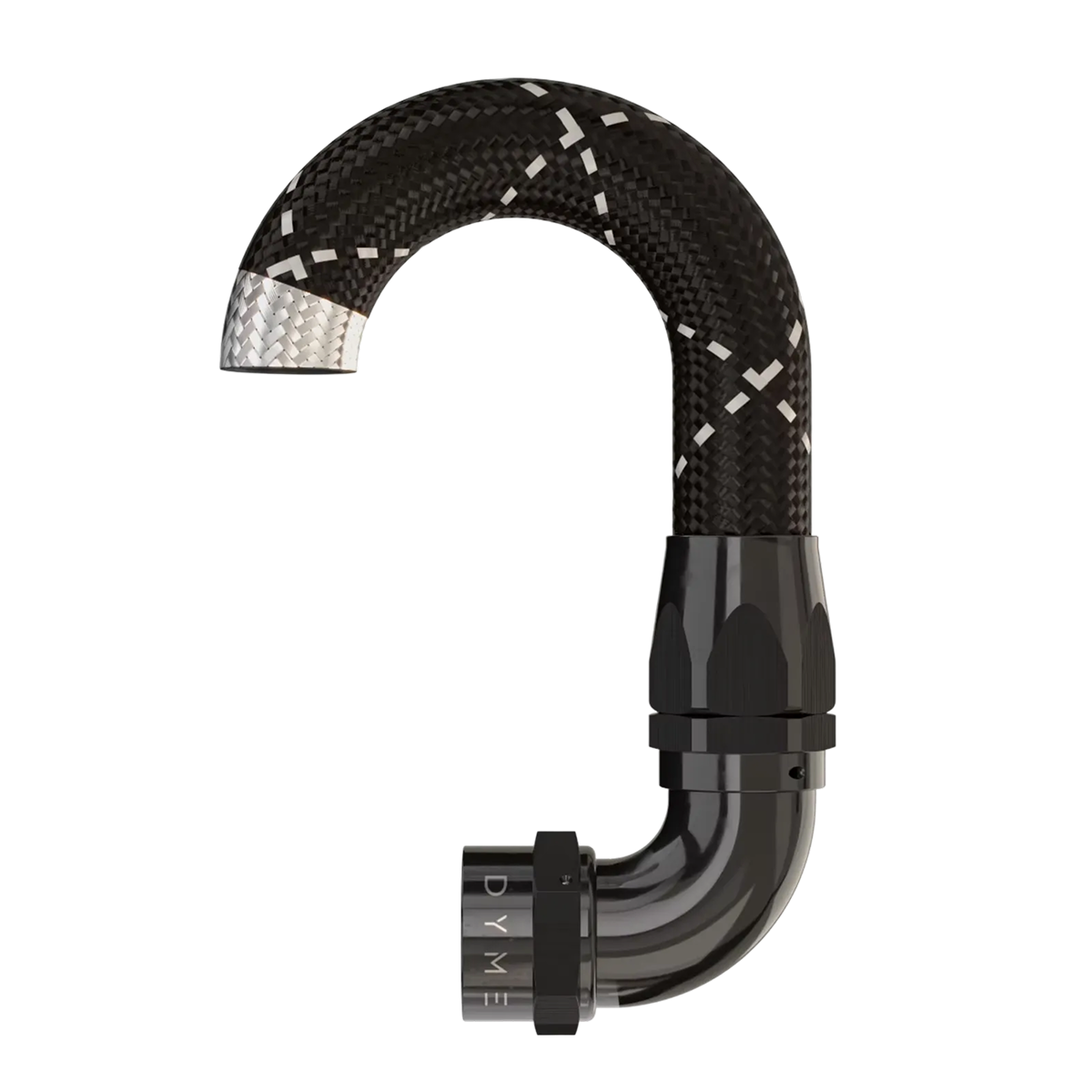

Custom Made Hose Assembly
Custom Made Hose Assembly - Image 2
Custom Made Hose Assembly - Image 3

Custom Made Hose Assembly

SKU: PSAT Category

$0.00

1.

What Size Hose Do You Need.

Hose Diameter
2.

What Hose Quality Do You Want?

3.

What Ends Do You Want

End 1

Choose the Type of Hose End

End 2

Choose the Type of Hose End

4.

Hose Length (Seat-To-Seat Length in Inches)

5.

Do You Want The Matching Fittings

Select Hose Type

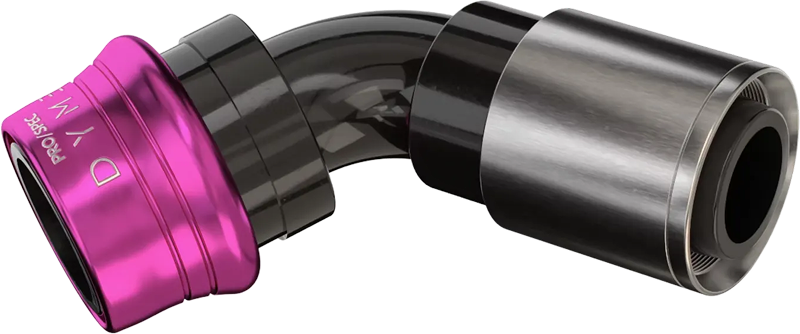

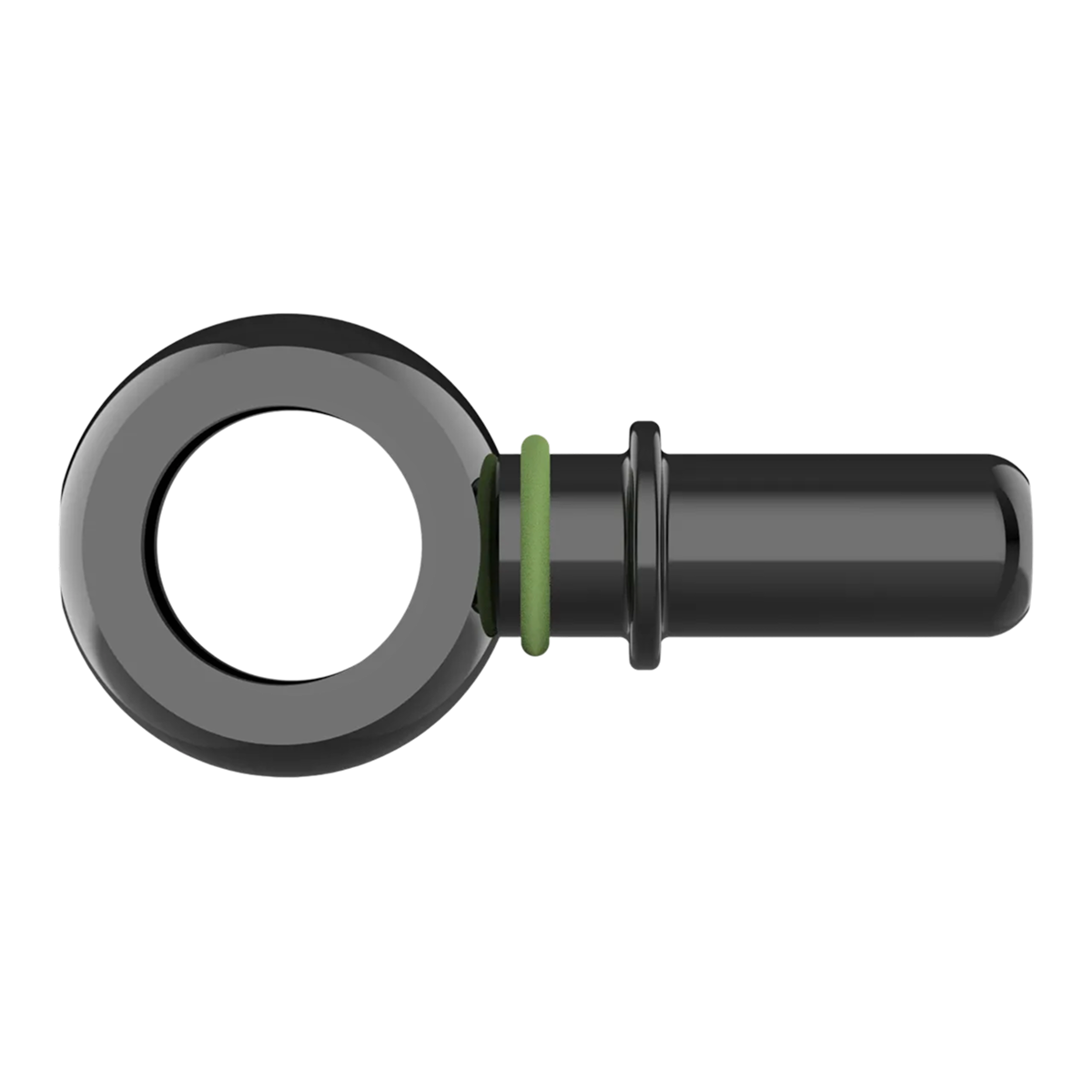

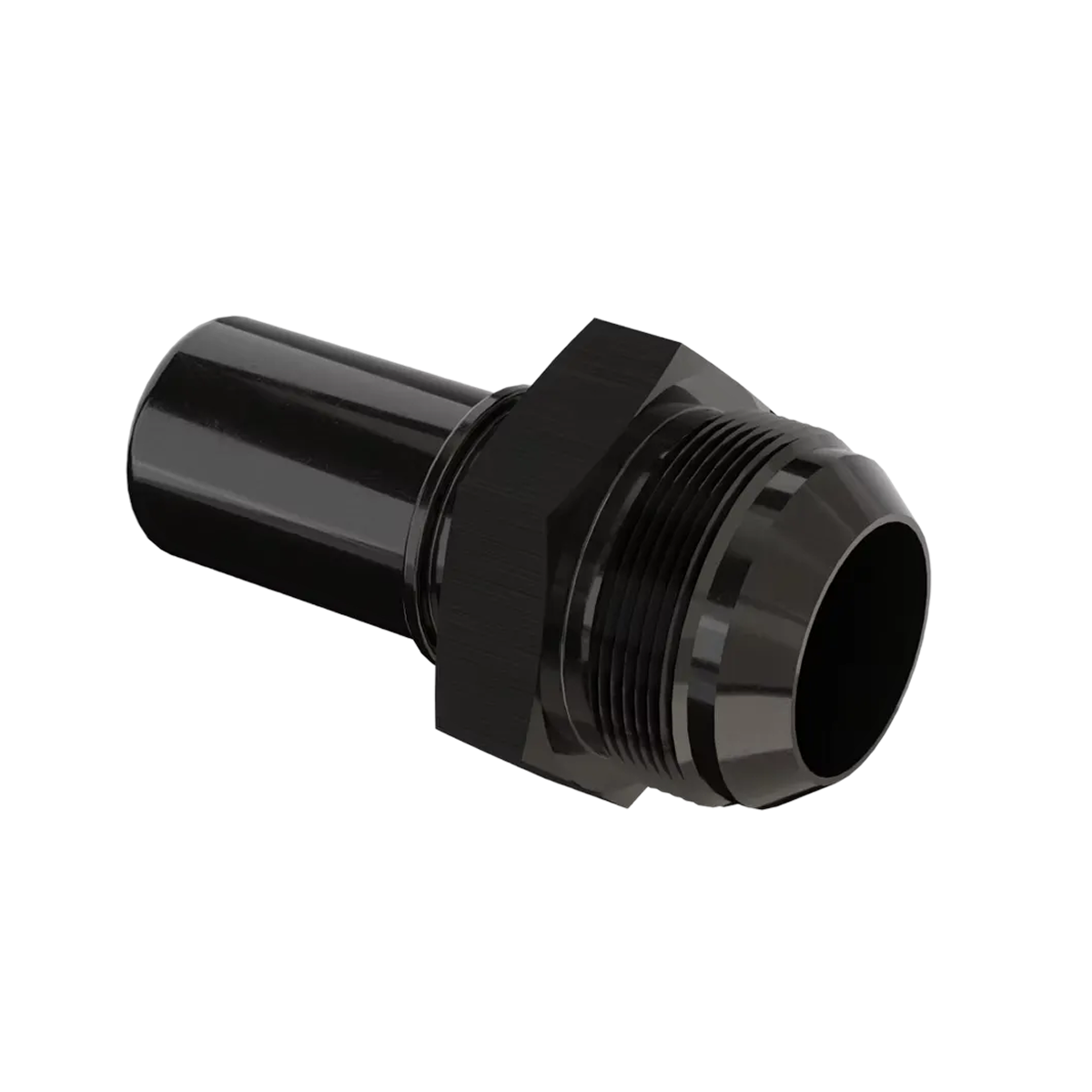

Adapter for End A

Select Hose Type

Adapter for End B

6.

Assembly and pressure testing

Your Customization

    $0.00

    Related Products

    It seems we can’t find what you’re looking for.

    Details

    Custom Made Hose Assembly

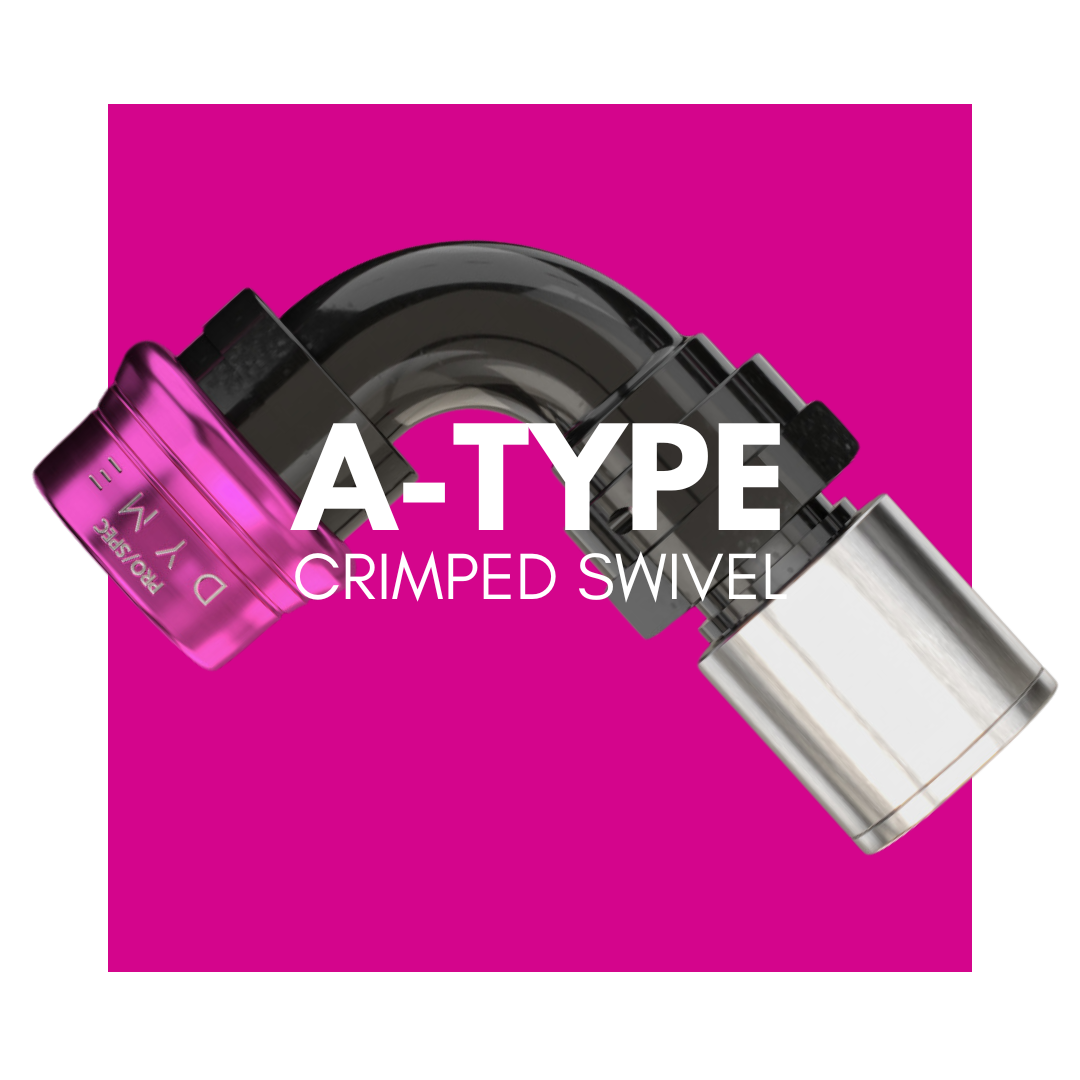

    Dyme Pro/Spec A-Type can build custom hose assemblies for all of your fluid control needs. Each custom hose assembly is built in-house to your exact specifications and pressure tested before shipping. Just use the configurator to select the hose end fittings, hose type and length, and heat shielding type and length (optional).

    Turnaround Time

    Please allow 1-3 business days for us to build your custom hose assemblies before shipping. Please contact us if you need an expedited timeline.

    Warranty and Pressure Testing

    All custom hose assemblies a pressure tested to ensure they do not leak. If your hose ever leaks due to a manufacturing or material defect, we will replace it at no charge! Please note this warranty does not cover damage to the hose or fittings caused by exterior forces such as heat, abrasion, impact, installation error, use with incompatible fluids, etc.

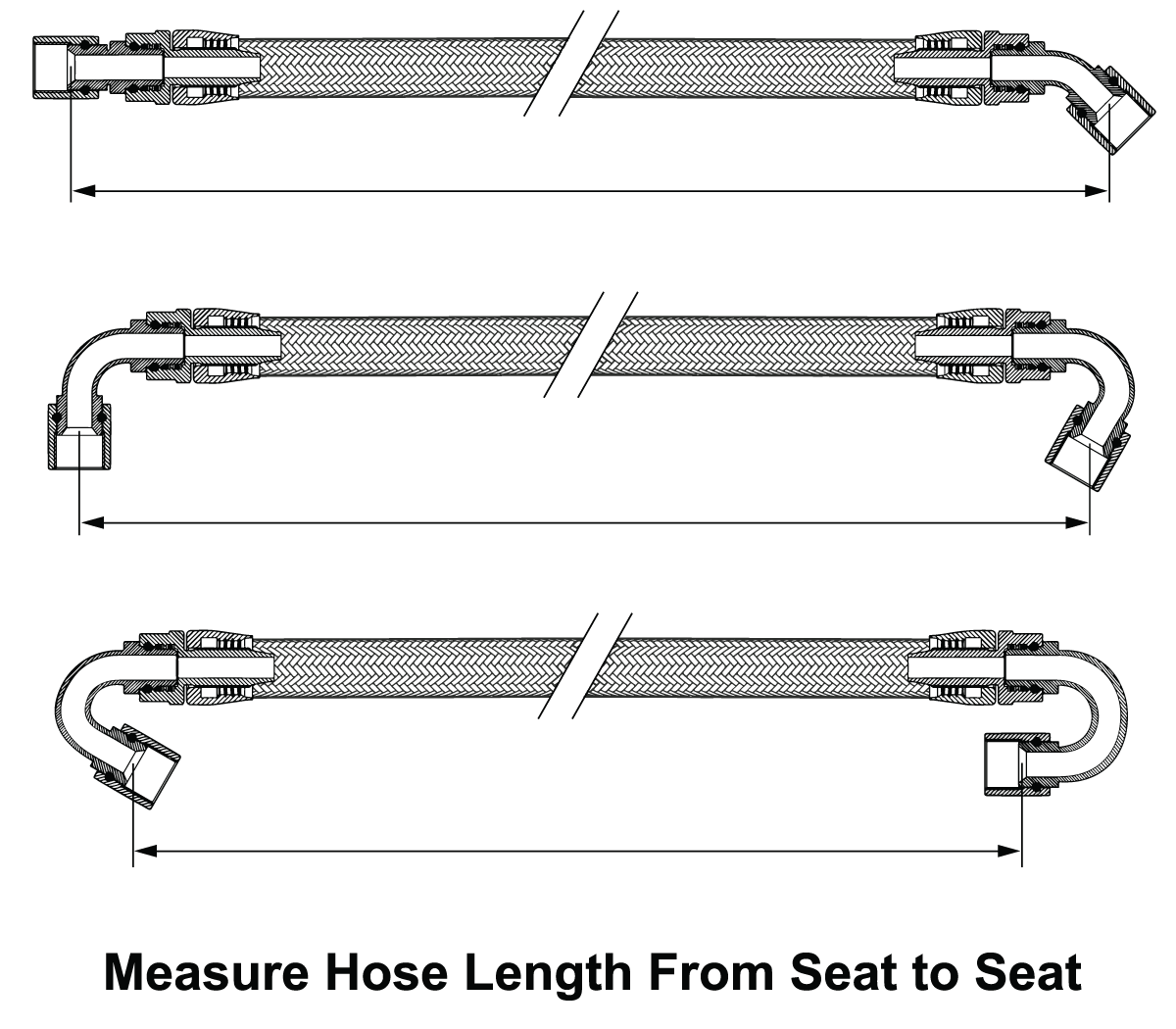

    How to Measure Your Hose Assembly

    Please note all custom assemblies are NON-RETURNABLE, so it’s important to take your time to carefully measure and plan each custom hose assembly.

    Hose assemblies are measured from the centers of seat to seat, or for pro-spec from the base of the prospec male fitting to base of male fitting.  Always add a few inches to the measured length to allow for flex, or the hose may fail.

    If you need to cancel your order, it must be cancelled immediately as we may begin building at any time. If it’s been more than a few minutes please call us and we can cancel your order if it has not been built.

    Measure Hose Length From Seat to Seat

    Hose Size

    -3AN
    -4AN
    -6AN
    -8AN
    -10AN
    -12AN
    -16AN

    Minimum Seat-to-Seat Length

    5 Inches
    5 Inches
    5 Inches
    5 Inches
    5 Inches
    5 Inches
    5 Inches

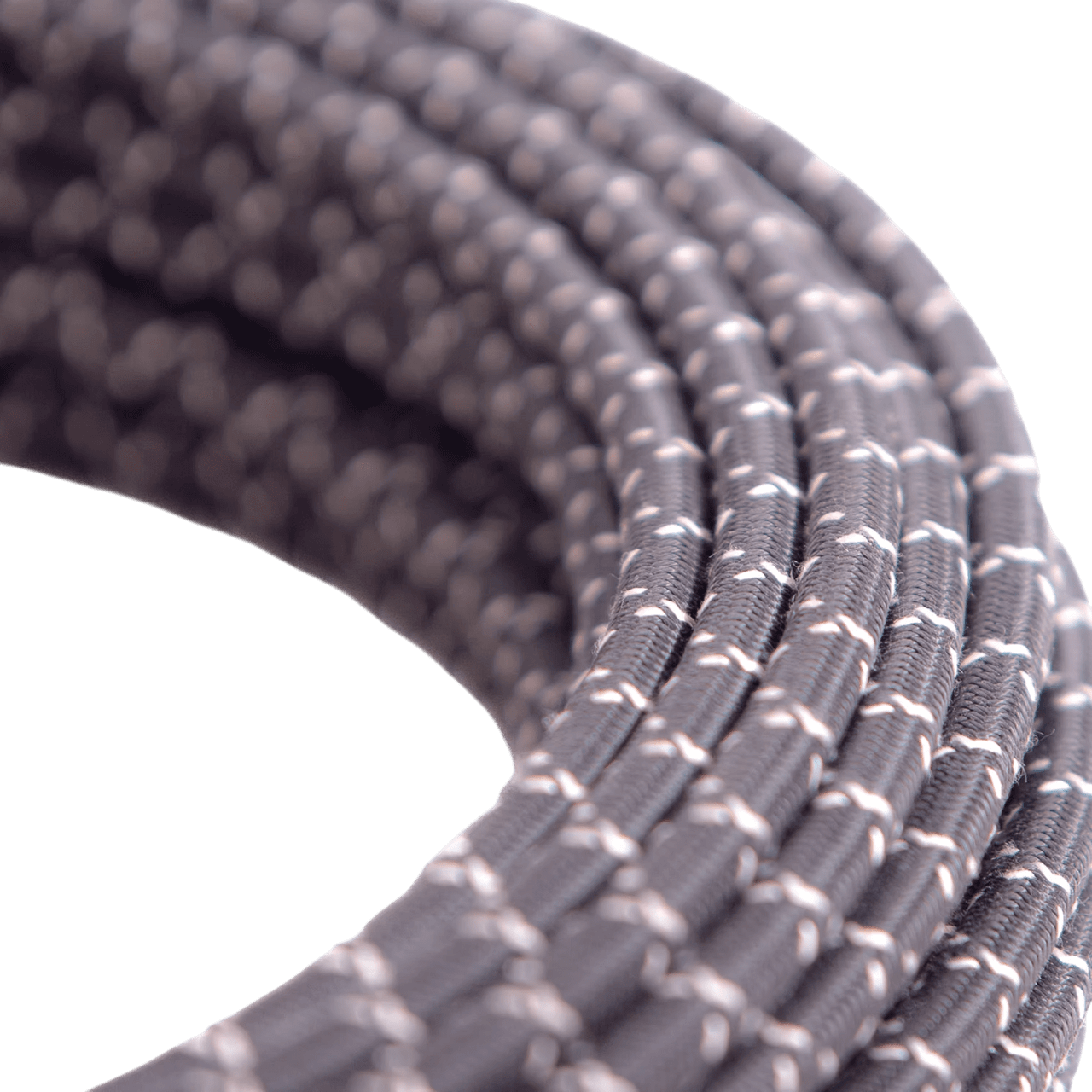

    Heat Shielding Sleeve

    Heat shielding protects your hose from heat and abrasion.

    Sizing your heat shield sleeve:

    • Full hose coverage — Email us which hoses and we will provide the pricing for the appropriate heat shielding.
    • Partial coverage If you need partial coverage simply let us know the length you need and they’ll be shipped unshrunk. Once you’ve positioned the sleeve, use a heat gun or blow dryer to shrink them in place.



    Assembly Length Tolerances

    Please note that hose assemblies are built to a tolerance of +/- 0.5″ (12.7mm) for hoses shorter than 5 feet (1.5m) and +/- 1″ (25.4mm) for hoses longer than 5 feet (1.5m) of the requested seat-to-seat length.

    Return and Cancellation Policy

    Please note all custom assemblies are NON-RETURNABLE, so it’s important to take your time to carefully measure and plan each custom hose assembly.

    If you need to cancel your order, it must be cancelled immediately as we may begin building at any time. If it’s been more than a few minutes please call us and we can cancel your order if it has not been built.

    Specifications and Fluid Compatibility

    Specifications, fluid compatibility, pressure ratings, and other parameters vary by the type of fitting and/or hose. Please see https://www.dymepsi.com/technical for more details.
